GA-1920

Gadolinium Fluoride

  • Formula: GdF3
  • |
  • CAS No: 13765-26-9
  • |
  • EC No: 237-369-4

Gadolinium Fluoride is available as >99.9 pure (metals basis) powder or granules in batch quantities for use in stiochiometrically (fluorine compensated) controlled high quality vacuum evaported thin-film coatings.

Other Identifiers
Categories: Fluorides, Halides, High Purity Salts
Get a Quote on Gadolinium Fluoride
Gadolinium Fluoride Physical Properties
  • Molecular Weight
    214.25 g/mol
  • Typical Purity
    99.9 - 99.99
  • Form

    Available as a powder or as granules.

  • Theoretical Density
    7.0 g/cm³
  • Melting Point
    1,231°C (2,247.8°F)
Gadolinium Fluoride Optical Properties
  • Refractive Index
    1.58 at 500nm
  • Transmission Range
    200nm - 12µm
  • Evaporation Temperature
    1,000 - 1,200ºC
  • Evaporation Source
    e-beam, Mo, W
Gadolinium Fluoride Picture

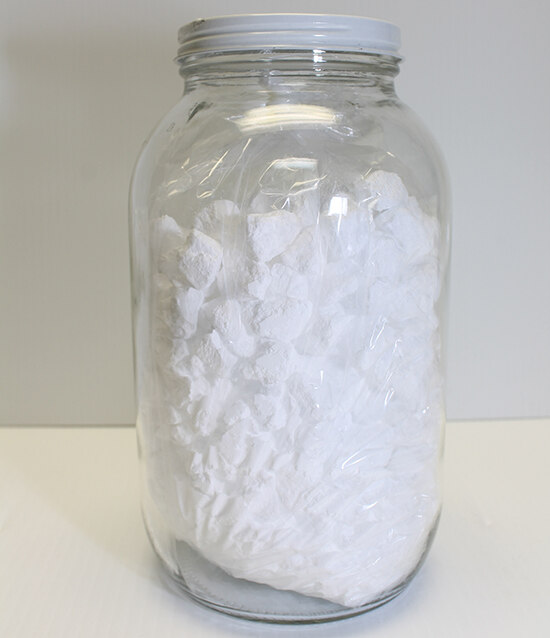

Gadolinium Fluoride Granules

1kg of Gadolinium Fluoride granules in a jar.
