Intense Green Strontium Thiogallate Phosphor for LED Applications

Posted 14 years ago and updated 7 years ago
Category: Product News

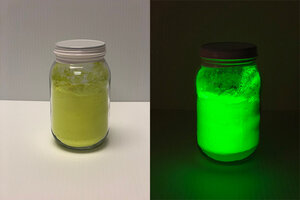

In keeping with the planned expansion of our range of phosphor materials, we are now able to offer commercial quantities, (multi-kg units) of an efficient europium activated strontium thiogallate phosphor.

Europium activated Strontium Thiogallate gives off an intense green emission at 525nm making it an ideal phosphor for green LED applications or as a prominent green component in the fabrication of white LEDs from UV diodes. Below is a typical excitation and emission spectra for this material.

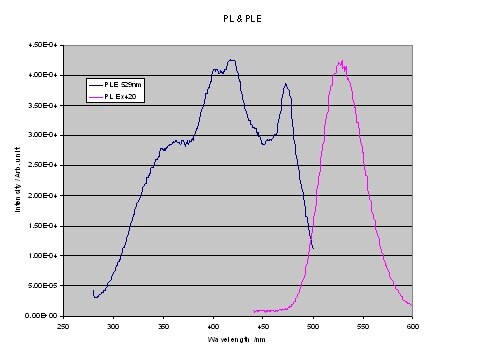

Europium Activated Strontium Thiogallate Excitation and Emission Spectrums

Measurements have demonstrated that Lorad's Europium activated Strontium Thiogallate has a quantum efficiency of 89% (CIE Coordinates: x=0.29, y=0.66). This material is now available in commercial quantities in large multi-kilogram batches.

Lorad has also developed a CaxSr1-xS:Eu intense red phosphor for LED applications, which is available in commercial quantities.
